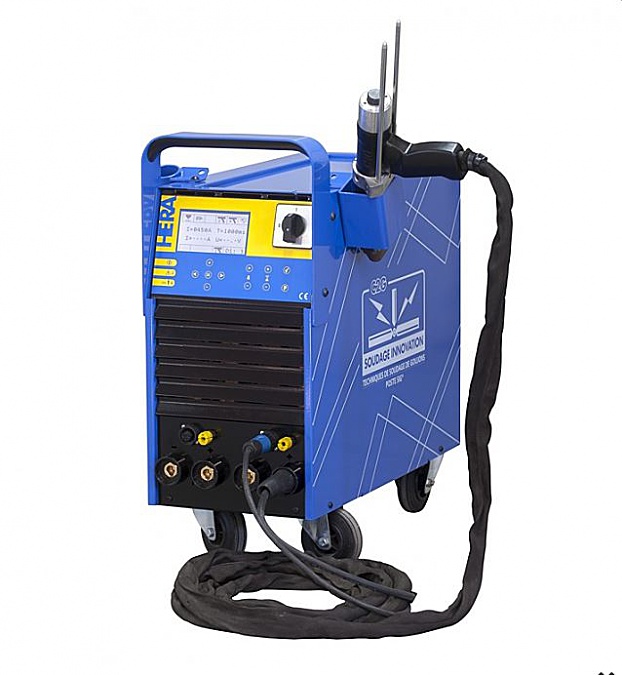

Stud welding ARC / HERA 1000


This modular generator uses the Inverter technique, which consists of a high frequency conversion and allows very rapid regulation, improving the reproducibility of welds: ARC FUSION FORGING, SIG ® and Arc Short Time processes.



CHARACTERISTICS :

Regulated and adjustable welding current from 0 to 1000 Amps, (inverter)

Running factor 15% (at 1000 A and 1 ms of arc time) or 6 studs / minute.

Lexan Keyboard

Pre-recorded settings, 80 programs, with 30 personal programs, 2 pistol outputs.

Arc Time Delay Short Time: 0.007 to 0.1 s.

Timing Arc Fusion Forging: 0.07 to 1 s.

Welding of all types and marks of standard studs

  • Diameter 1 to 14 mm in Arc Fusion Forging with ceramic.
  • Diameter 1 to 10 mm in Arc Short Time With
  • Diameter of 1 to 12 mm in SIG® under neutral gas.

Weldable materials: Structural steels, Stainless steel all grades, H-R steels, Titanium, Nickel, bases nickel, Copper, Aluminum, etc ...

Uses standardized gases or gas mixtures according to Materials, Argon / CO²

Power supply: 400 Volts three-phase, 50/60 Hz. 63 A - AM protection IP21

Dimensions: L = 600 X l = 265 X H = 660 with wheels

Weight: 50 Kg



Différent powers are available :


HERA 1000 puissance max 1000 A ø 12
HERA 1500 puissance max 1500 A ø 16

HERA 2000 puissance max 2000 A ø 20
HERA 2500 puissance max 2500 A ø 25
