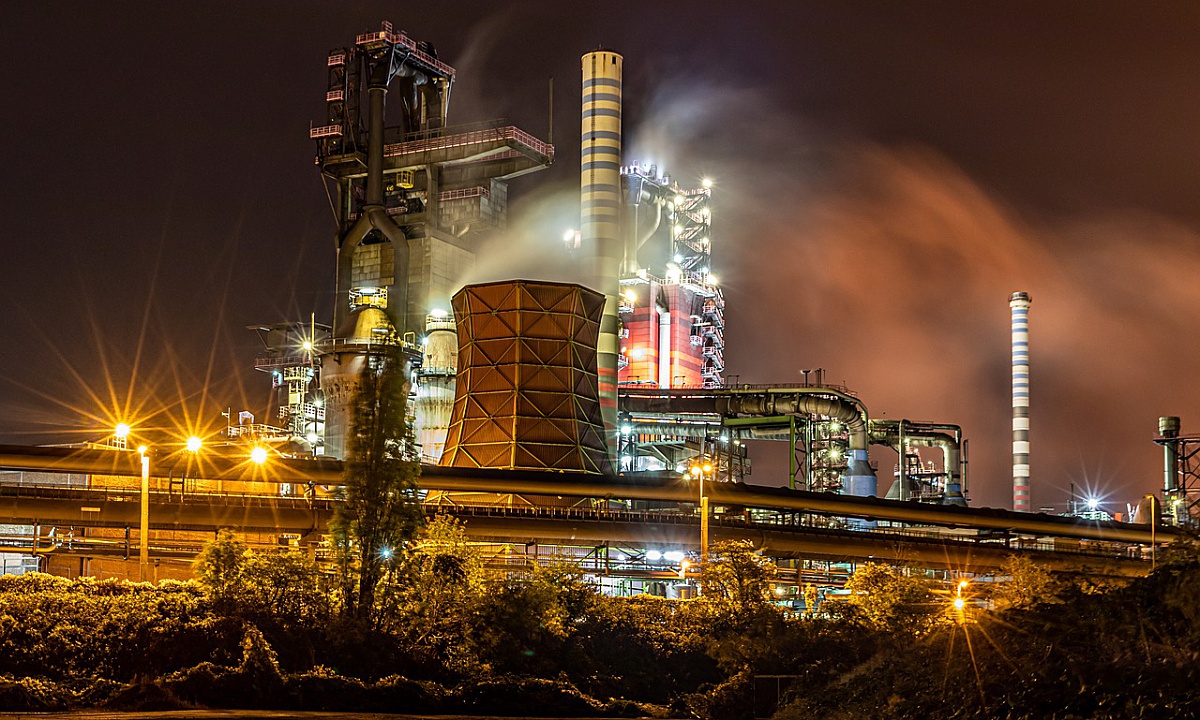

Applications : Furnaces


REFRACTORY FIBROUS ANCHORS

Process : Stud welding SIG® | Stud welding ARC

C2G Soudage Innovation is a French manufacturer offering complete solutions for refractory concrete and fibrous anchors.


ANCHOR GUN WELDING WITH BALL AND FERRULE

Exemple d'ancrage réfractaire fibreux

FIBROUS REFRACTORY ANCHORS FOR FIXING FIBROUS INSULATING REFRACTORY LININGS TO WALLS.
THEY CONSIST OF A PIN AND A RECTANGULAR CLIP OR A CERAMIC CUP (QUARTER-TURN SYSTEM).


ancrages

C2G SOUDAGE INNOVATION, FRENCH MANUFACTURER OF WELDING EQUIPMENT AND STUDS AND REFRACTORY ANCHORING SYSTEMS BY WELDING, SIG AND ARC FUSION FORGING (AFF) PROCESSES


C2G Soudage Innovation is a French specialist in stud welding and designs and manufactures a range of equipment and machines for welding anchor bolts using two technologies:
- The SIG process is recommended for the installation of studs with a diameter of 3 to 12 mm in the workshop (e.g. on heat exchangers), a process without ferrule, with neutral gas protecting the molten bath.
- The AFF process is ideal for on-site installation of 6 to 12 mm or more, using a ceramic ferrule that forms a collar to protect the molten metal from oxidation caused by the voltaic arc.

NEW JUPITER 800 I ® : THE IDEAL GENERATOR FOR WELDING UP TO DIAM. 12

-


The new JUPITER 800I Inverter version, available as standard with SIG © and ARC fusion forging processes, is the third generation of C2G's UPS technology. It combines a low weight (12kg) and compact construction with a high current output of 800 Amps.

It is equipped with a PCB, and RS485, with its pre-set parameters, this new generator offers even greater convenience in its use.
Good dimensional stability and shock resistance, its weight allows the generator to be lighter, an undeniable factor for construction sites or work at height.
